Three Source, 6" Integratable Amplified In Ceiling Speakers

Vendor: OWI

Qty: AMP-HDTR6 One AMP Speaker ONLY with Transformer $569.99

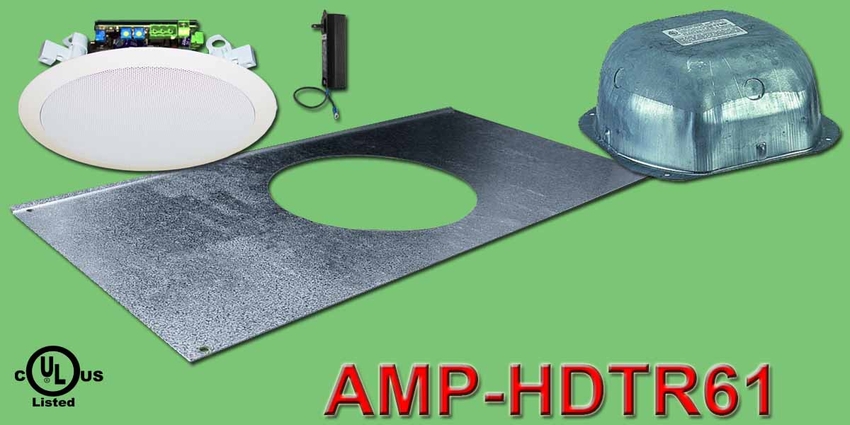

Qty: AMP-HDTR61 One Speaker Combo with Transformer $591.99
Qty: AMP-HDTR61SVC One Speaker Combo with Volume Control with Transformer $745.99
Qty: AMP-HDTR62 Two Speaker Combo with Transformer $727.99
Qty: AMP-HDTR62SVC Two Speaker Combo with Volume Control with Transformer $881.99
Qty: AMP-HDTR64 Four Speaker Combo with Transformer $995.99
Qty: AMP-HDTR64SVC Four Speaker Combo with Volume Control with Transformer $1149.99

Please, enter quantity for at least one product

Quantity unavailable. Try selecting a smaller quantity.

Features:

NFPA72 ready with built in electronic shunt
Integrates with life safety
Works with talkback paging
Built onto the OWI IC6 In-Ceiling Speakers
UL LIsted
1 - 3.5 stereo Mini-jack input
With Built-in Stereo Combiner
1 Balanced Line Level Input (Priority input)
With Priority Override Feature
1 CAT5 Input
Up to 40 Watts of Power - right at the speaker
Balanced Line level Output
Available in models with Bluetooth Volume control option
15 Volt DC power supply (UL Listed-Level 5) included
Protected from shorts and overheating
Lower Noise Feature
Fast and easy - install in the field
Stereo/mono volume controls available
Bluetooth Volume Control available
Available in 1, 2 and 4 speaker packages

The AMP-HDTR6is a (3) Source Integratable amplified ceiling speaker with a transformer. It includes an electronic shunt to help conform to life safety NFPA72 regulations to be able to shut off from a central locations in the event of an emergency. The new amplifier has 3 sources; 1) one stereo 3.5 mini jack line input, 2) one POP aux input, and 3) one CAT 5 input for connection to the OWI MC4 mixer. (If 25/70/100 volt is required then a transformer will be required and supplied).

A new advantage for the AMP-HDTR6 is that the upgrade is modular. If Bluetooth, or a digital input or more inputs are required then an upgraded board can be attached to the AMP-HDTR6 or can be installed remotely and connected via the RJ45 input. This flexibility is designed to provide multiple applications for different markets with a single product.

The AMP-HDTR6 is the perfect audio partners for projectors, microphones, music and paging applications. By placing the amplifier within inches of the speaker, maximum damping control of the speaker due to low source impedance is achieved. The result is optimum high fidelity reproduction and response without an external amplifier. With up to 40 watts of class AB power delivered directly to the speaker, OWI's self-amplified speakers are powerful enough to drive three additional non-amplified speakers.
